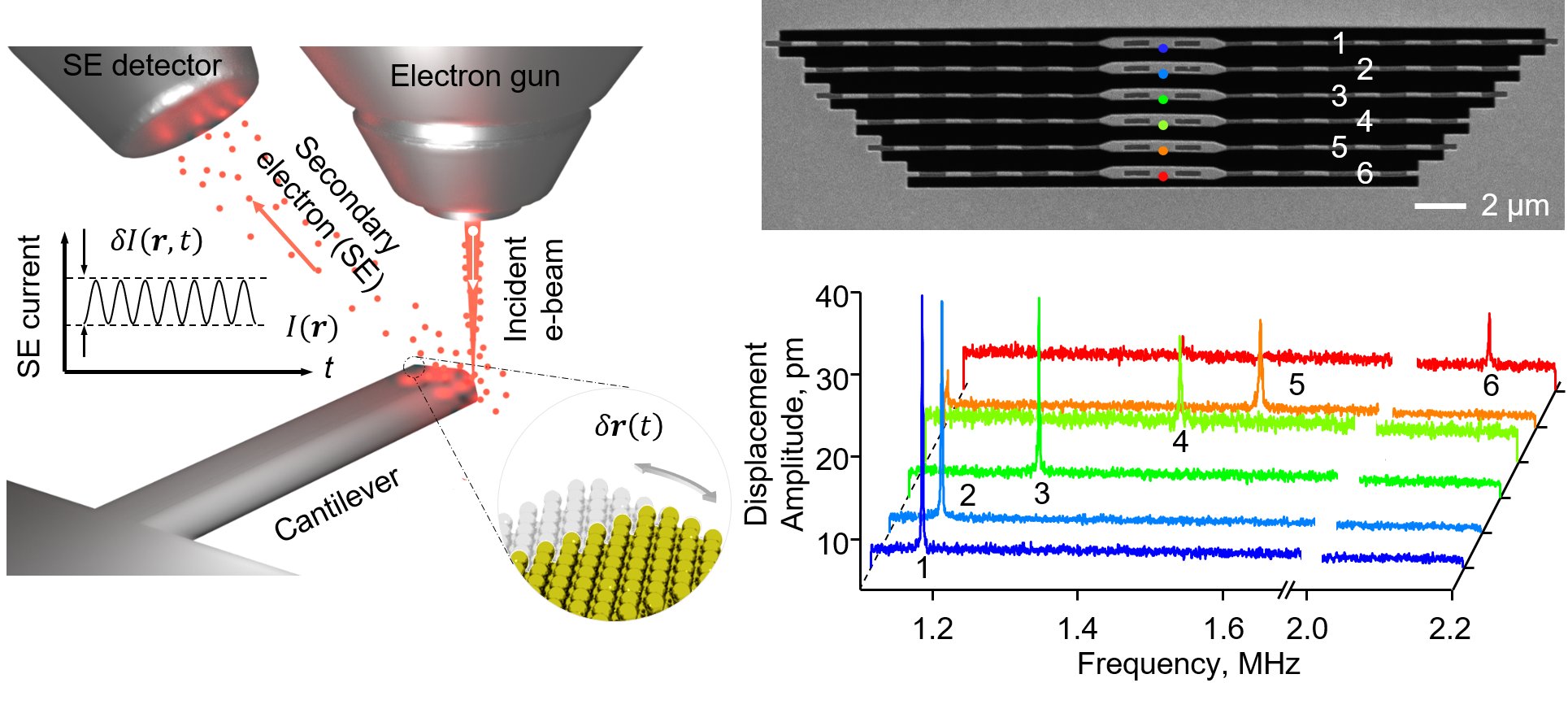

Nanoscale objects move fast and oscillate billions of times per second. Such movements occur naturally in the form of thermal (Brownian) motion while stimulated movements underpin the functionality of nano-mechanical sensors and active nano-(electro/opto) mechanical devices. Here we introduce a methodology for detecting such movements, based on the spectral analysis of secondary electron emission from moving nanostructures, that is sensitive to displacements of sub-atomic amplitude. We demonstrate the detection of nanowire Brownian oscillations of ~10 pm amplitude and hyperspectral mapping of stimulated oscillations of setae on the body of a common flea. The technique opens a range of opportunities for the study of dynamic processes in materials science, nanotechnology and biology.
Ref:
Detection of sub-atomic movement in nanostructures
T. Liu, J. Y. Ou*, K. F. MacDonald, and N. I. Zheludev, Nanoscale Adv. 3, 2213 (2021) doi: 10.1039/d0na01068e – pdf
Visualization of Sub-atomic Movements in Nanostructures
T. Liu, J. Y. Ou*, E. Plum, K. F. MacDonald, and N. I. Zheludev Nano Lett. 21 (18), 7746-7752 (2021) doi: 10.1021/acs.nanolett.1c02644 – pdf
Ballistic dynamics of flexural thermal movements in a nanomembrane revealed with subatomic resolution
T. Liu, J. Y. Ou*, N. Papasimakis, K. F. MacDonald, V. E. Gusev, N. I. Zheludev
Sci. Adv. 8 (33), eabn8007 (2022) doi: 10.1126/sciadv.abn8007 – pdf
